Push-in Fittings

A DMfit logo next to the text

Certificate

Six certification logos, including NSF, FDA, WRAS, ACS, and two SGS marks, arranged horizontally on a white background.
  • Water & foods use: DMfit products are manufactured from safe, non-toxic materials meeting the requirements of FDA, WRAS, ANSI/NSF-51, 61, ACS, K-TW and DVGW-W270.
  • Function & Quality: DMfit provides quick and convenient assemble. Our ISO9001, 14001 registered quality system ensures our customers a superior level of product quality.
  • Collet Design: Our unique oval collet design is superior and more practical, and is an improvement welcomed by our world-wide customers in all industries.

Model

A table with columns for Part No., Stem O.D., Tube I.D., and Qty/Box, listing specifications for parts ATEB 0404 and 0606.

Note

  • ※ Part numbers are listed in gray. For white, please add “W” at the end of the part number.

Fittings Specifications Overview

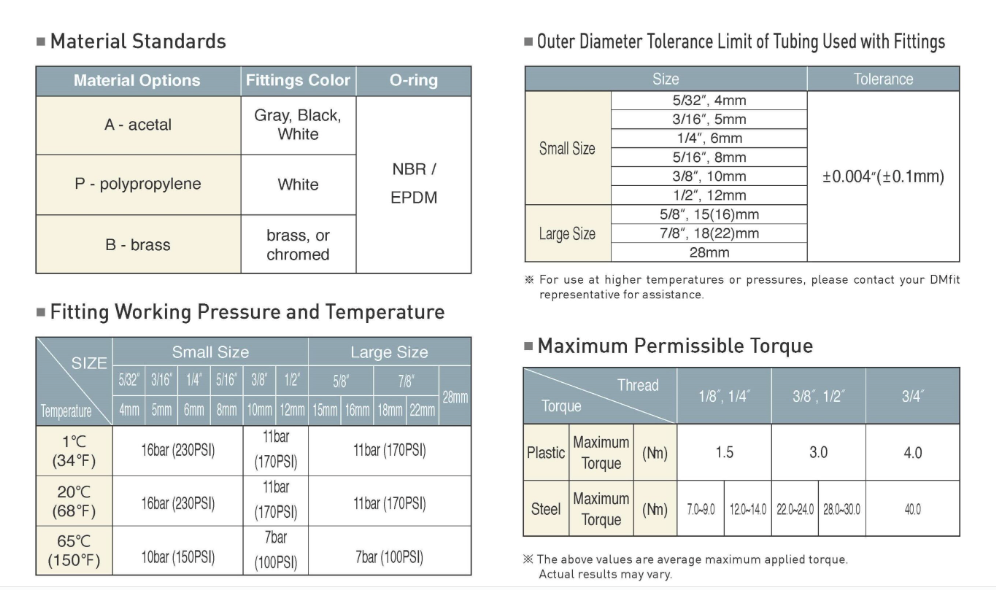

Four technical tables detailing material standards, tubing tolerances, pressure/temperature ratings, and torque limits.

Chemical Compatibility Table

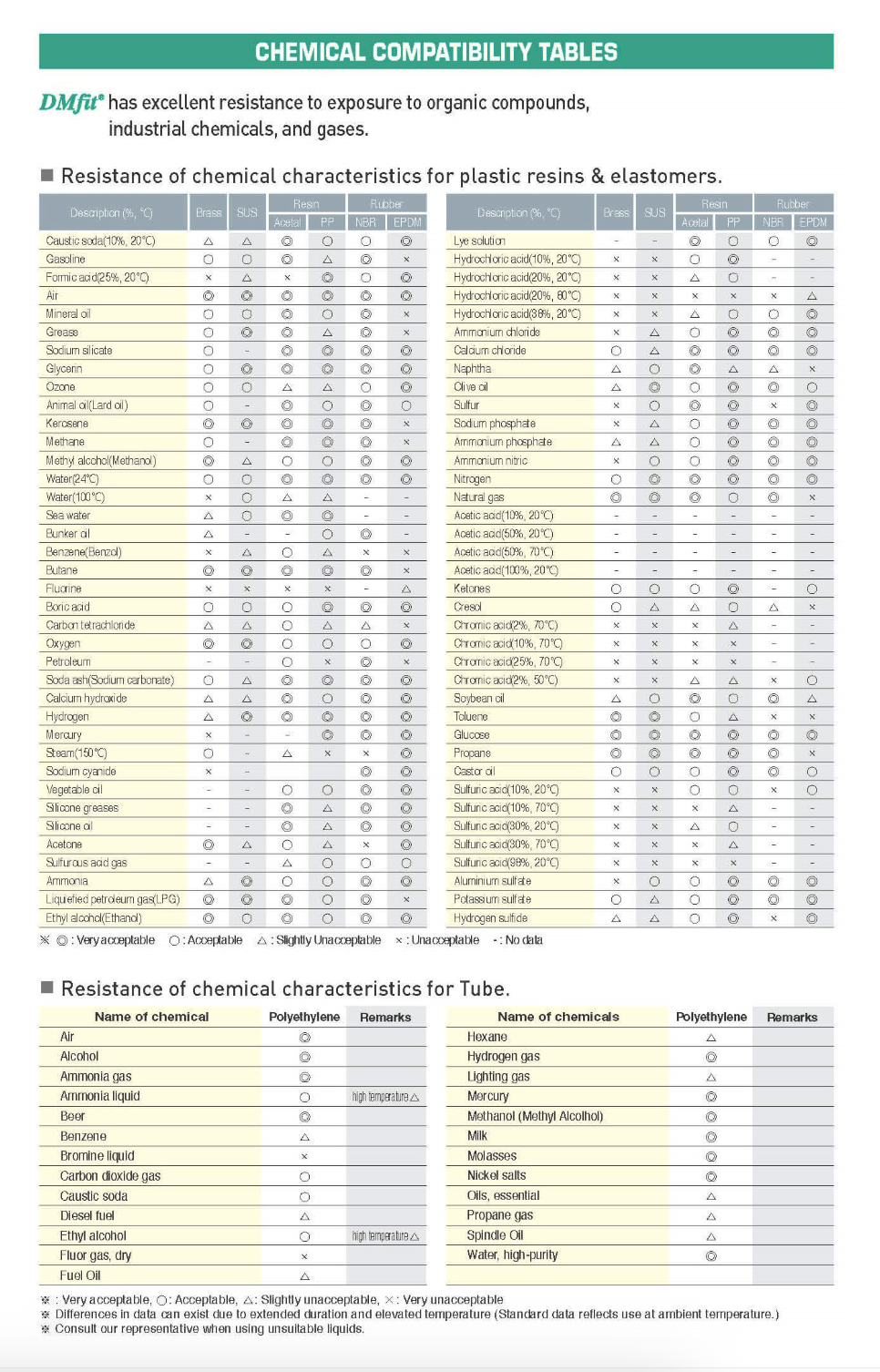

Chemical compatibility table for various materials showing resistance ratings for different substances.
