LLDPE Tubings

A DMfit logo next to the text

Certificate

Six certification logos, including NSF, FDA, WRAS, ACS, and two SGS marks, arranged horizontally on a white background.
  • High quality: DMfit products are manufactured from advanced grade of LLDPE. Its greatest advantage is superior environmental stress cracking resistance(ESCR), greatly exceeding that of ordinary polyethylene tubing as measured by ASTM D-1693(IGEPAL) tests. Environment stresses that can shorten the service life of tubing include chemical exposure, aging connections with barb-type fittings, or high vibration loads with connections to expressing fitting.
  • Certificate: The tubing is complaint to FDA, WRAS, ANSI/NSF-51, 61 requirement.
  • Collect Design: Wide range of availably colors and suitable for use with DMfit products and those of other manufactures.

Model

A table with columns for Part No., Stem O.D., Tube I.D., and Qty/Box, listing specifications for parts ATEB 0404 and 0606.

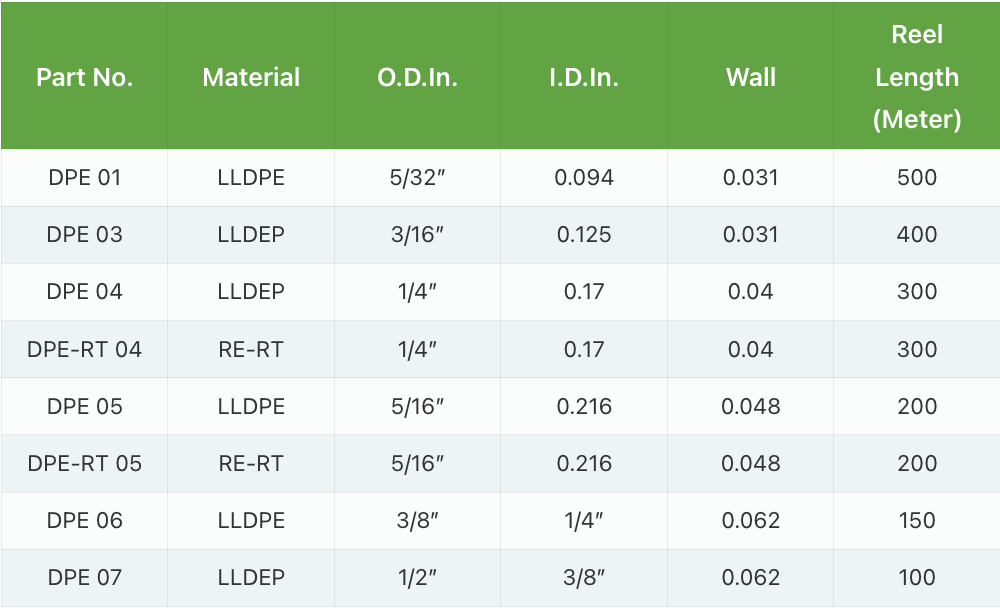

Inch Size

Four technical tables detailing material standards, tubing tolerances, pressure/temperature ratings, and torque limits.

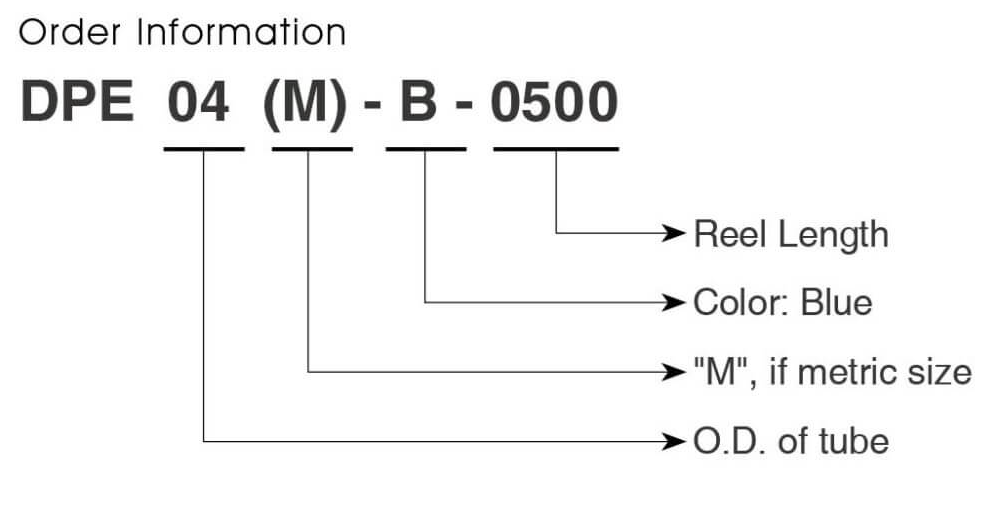

Order Info

Four technical tables detailing material standards, tubing tolerances, pressure/temperature ratings, and torque limits.

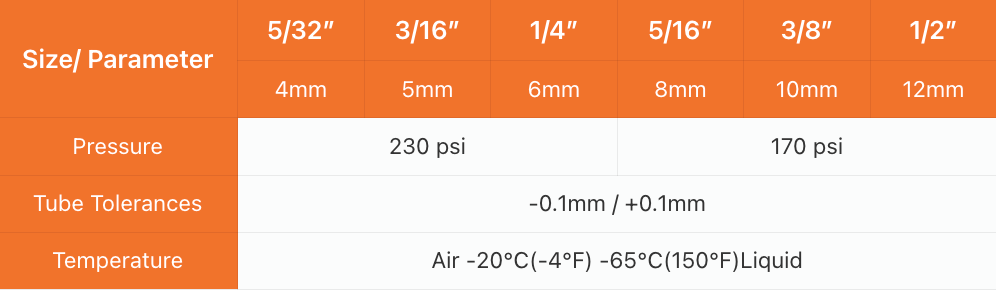

Working Pressure and Temperature

Chemical compatibility table for various materials showing resistance ratings for different substances.
