Puroflo Pleated Filter Cartridges

Features & Benefits

  • More surface area, greater dirt holding capacity
  • Washable and reusable
  • Higher flow rate and lower pressure drop
  • FDA listed materials for drinking water, beverages, and liquid food applications
  • Ideal for industrial and commercial applications

Spec

  • Max. Temp. : 140°F (6°C)
  • Min. Temp. : 40°F (4.4°C)
  • Media : Polyester
  • Material-Center Tube : Polypropylene
  • Material-End Cap : PVC

9-3/4″ X 2-1/2″

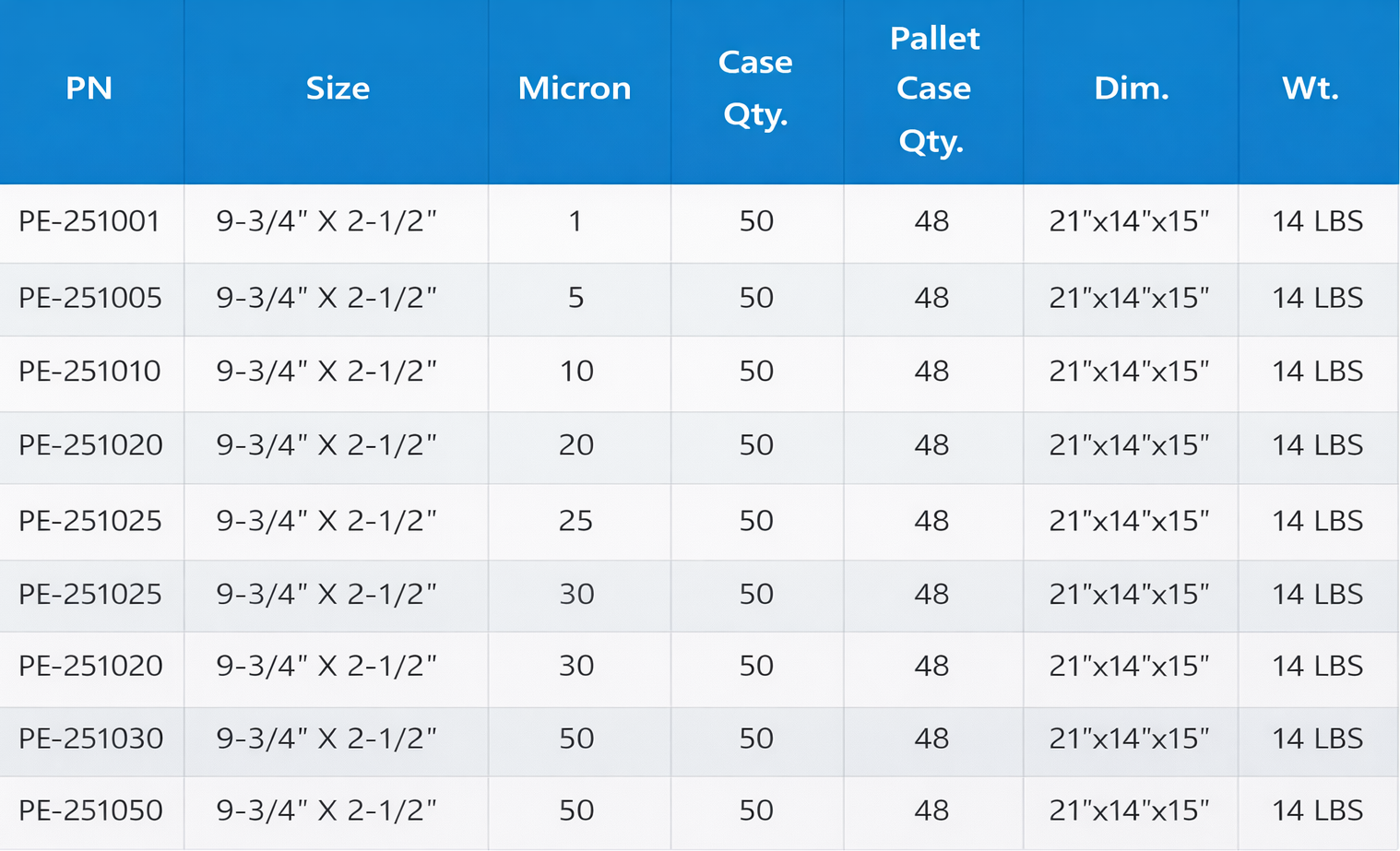

PN Size Micron Case Qty. Pallet Case Qty. Dim. Wt.
PE-251001 9-3/4″ X 2-1/2″ 1 50 48 21″x14″x15″ 14 LBS
PE-251005 9-3/4″ X 2-1/2″ 5 50 48 21″x14″x15″ 14 LBS
PE-251010 9-3/4″ X 2-1/2″ 10 50 48 21″x14″x15″ 14 LBS
PE-251020 9-3/4″ X 2-1/2″ 20 50 48 21″x14″x15″ 14 LBS
PE-251025 9-3/4″ X 2-1/2″ 25 50 48 21″x14″x15″ 14 LBS
PE-251030 9-3/4″ X 2-1/2″ 30 50 48 21″x14″x15″ 14 LBS
PE-251050 9-3/4″ X 2-1/2″ 50 50 48 21″x14″x15″ 14 LBS

20″ X 2-1/2″

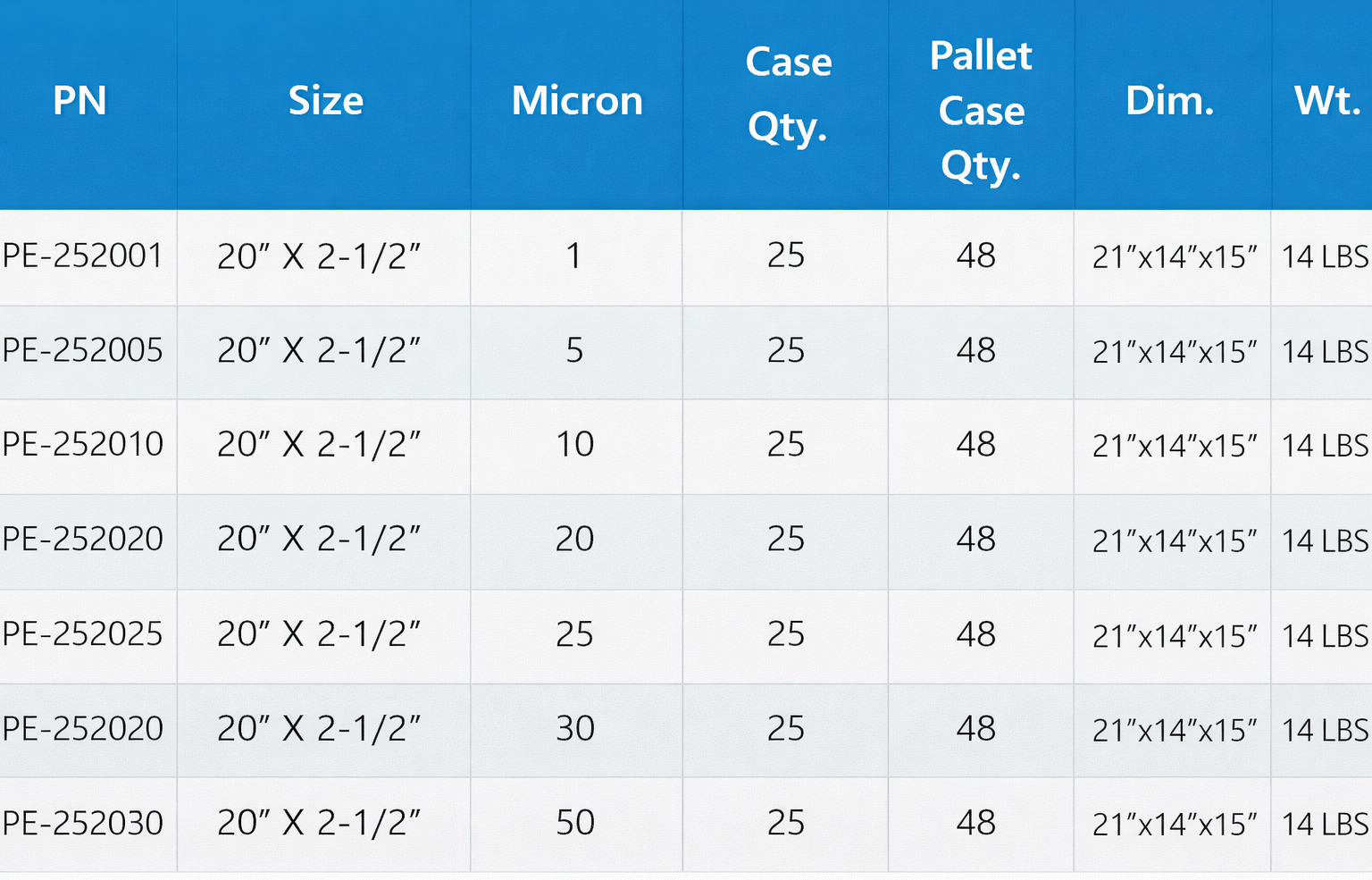

PN Size Micron Case Qty. Pallet Case Qty. Dim. Wt.
PE-252001 20″ X 2-1/2″ 1 25 48 21″x14″x15″ 14 LBS
PE-252005 20″ X 2-1/2″ 5 25 48 21″x14″x15″ 14 LBS
PE-252010 20″ X 2-1/2″ 10 25 48 21″x14″x15″ 14 LBS
PE-252020 20″ X 2-1/2″ 20 25 48 21″x14″x15″ 14 LBS
PE-252025 20″ X 2-1/2″ 25 25 48 21″x14″x15″ 14 LBS
PE-252030 20″ X 2-1/2″ 30 25 48 21″x14″x15″ 14 LBS
PE-252050 20″ X 2-1/2″ 50 25 48 21″x14″x15″ 14 LBS

10″ X 4-1/2″

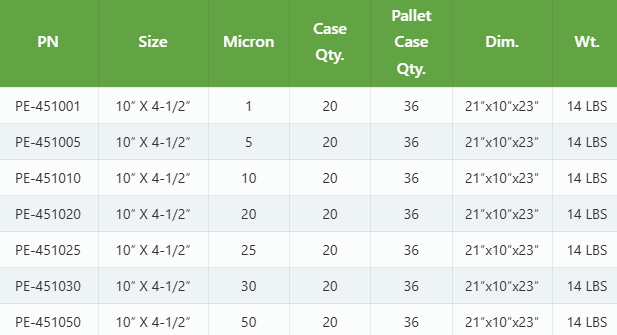

PN Size Micron Case Qty. Pallet Case Qty. Dim. Wt.
PE-451001 10″ X 4-1/2″ 1 20 36 21″x10″x23″ 14 LBS
PE-451005 10″ X 4-1/2″ 5 20 36 21″x10″x23″ 14 LBS
PE-451010 10″ X 4-1/2″ 10 20 36 21″x10″x23″ 14 LBS
PE-451020 10″ X 4-1/2″ 20 20 36 21″x10″x23″ 14 LBS
PE-451025 10″ X 4-1/2″ 25 20 36 21″x10″x23″ 14 LBS
PE-451030 10″ X 4-1/2″ 30 20 36 21″x10″x23″ 14 LBS
PE-451050 10″ X 4-1/2″ 50 20 36 21″x10″x23″ 14 LBS

20″ X 4-1/2″

PN Size Micron Case Qty. Pallet Case Qty. Dim. Wt.
PE-452001 20″ X 4-1/2″ 1 20 36 21″x10″x23″ 14 LBS
PE-452005 20″ X 4-1/2″ 5 20 36 21″x10″x23″ 14 LBS
PE-452010 20″ X 4-1/2″ 10 20 36 21″x10″x23″ 14 LBS
PE-452020 20″ X 4-1/2″ 20 20 36 21″x10″x23″ 14 LBS
PE-452025 20″ X 4-1/2″ 25 20 36 21″x10″x23″ 14 LBS
PE-452030 20″ X 4-1/2″ 30 20 36 21″x10″x23″ 14 LBS
PE-452050 20″ X 4-1/2″ 50 20 36 21″x10″x23″ 14 LBS

9-3/4″ X 2-1/2″

20″ X 2-1/2″

Cream-colored metal plant stand with ornate top and triangular base, empty.

10″ X 4-1/2″

20″ X 4-1/2″

9-3/4″ X 2-1/2″

20″ X 2-1/2″

Cream-colored metal plant stand with ornate top and triangular base, empty.

10″ X 4-1/2″

20″ X 4-1/2″
