GAC Filter Cartridges
Features
- Coconut shell activated carbon
- Recommended working pressure: 20-100 psi
- Minimum/Maximum temp: 40°F/ 100°F
- Flow rate, MAX: 1 GPM STD 9 3/4”, 2 GPM STD 20”, 3 GPM 4.5”X 9 3/4”, 5 GPM 4.5” X 20”

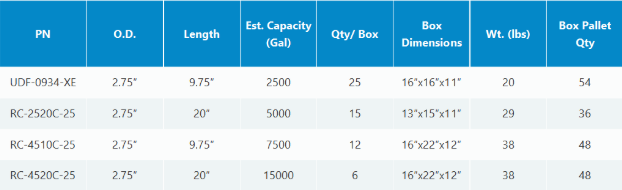

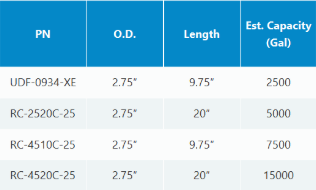

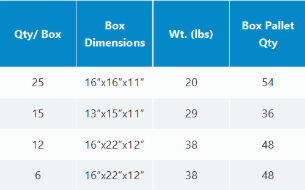

| PN | O.D. | Length | Est. Capacity (Gal) | Qty/ Box | Box Dimensions | Wt. (lbs) | Box Pallet Qty |
|---|---|---|---|---|---|---|---|

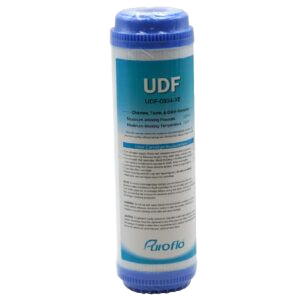

| UDF-0934-XE | 2.75" | 9.75" | 2500 | 25 | 16"x16"x11" | 20 | 54 |
| RC-2520C-25 | 2.75" | 20" | 5000 | 15 | 13"x15"x11" | 29 | 36 |
| RC-4510C-25 | 2.75" | 9.75" | 7500 | 12 | 16"x22"x12" | 38 | 48 |
| RC-4520C-25 | 2.75" | 20" | 15000 | 6 | 16"x22"x12" | 38 | 48 |
Features
- Coconut shell activated carbon
- Recommended working pressure: 20-100 psi
- Minimum/Maximum temp: 40°F/ 100°F
- Flow rate, MAX: 1 GPM STD 9 3/4”, 2 GPM STD 20”, 3 GPM 4.5”X 9 3/4”, 5 GPM 4.5” X 20”
Features
- Coconut shell activated carbon
- Recommended working pressure: 20-100 psi
- Minimum/Maximum temp: 40°F/ 100°F
- Flow rate, MAX: 1 GPM STD 9 3/4”, 2 GPM STD 20”, 3 GPM 4.5”X 9 3/4”, 5 GPM 4.5” X 20”
